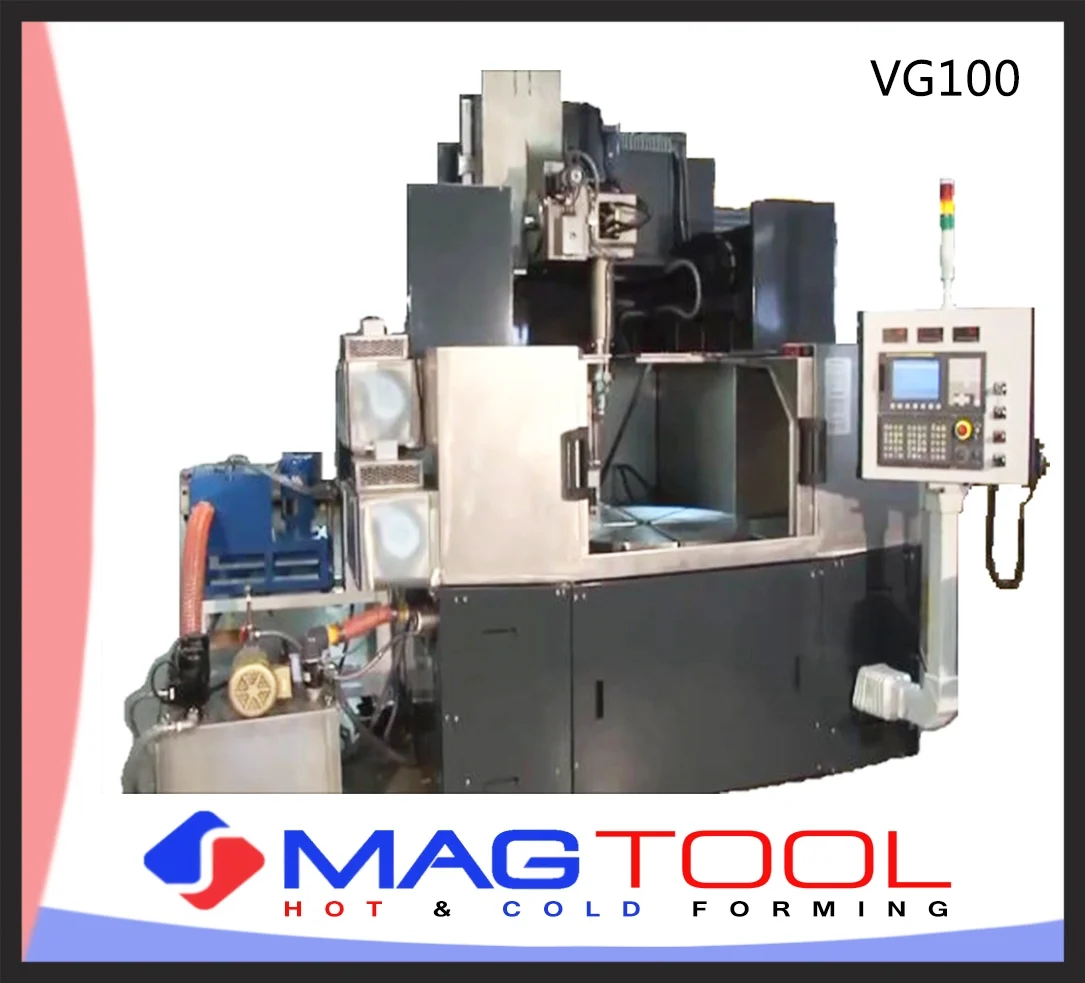

Model VG100

Standard Features

  • Large Work Volume
  • Rigid Cast Iron Construction
  • Fanuc Oi Td Controller
  • 1000A Solid State DC Power Supply
  • Hydraulic Driven Rotary Wheel Dresser
  • Renishaw Wheel Probing

Specifications

  • Table: 1000mm diameter (39.37” diameter)
  • Vertical Travel: 457mm (18”)
  • Horizontal Travel: 910mm (35.8”)
  • Spindle Motor: 7.5 HP
  • Wheel Diameter Maximum: 305mm (12”)
  • Electricals: 460V/3 PH/60Hz
  • Base: Heavy duty cast iron
  • Column: Heavy duty cast iron
  • Weight: ≈44,000 lbs
