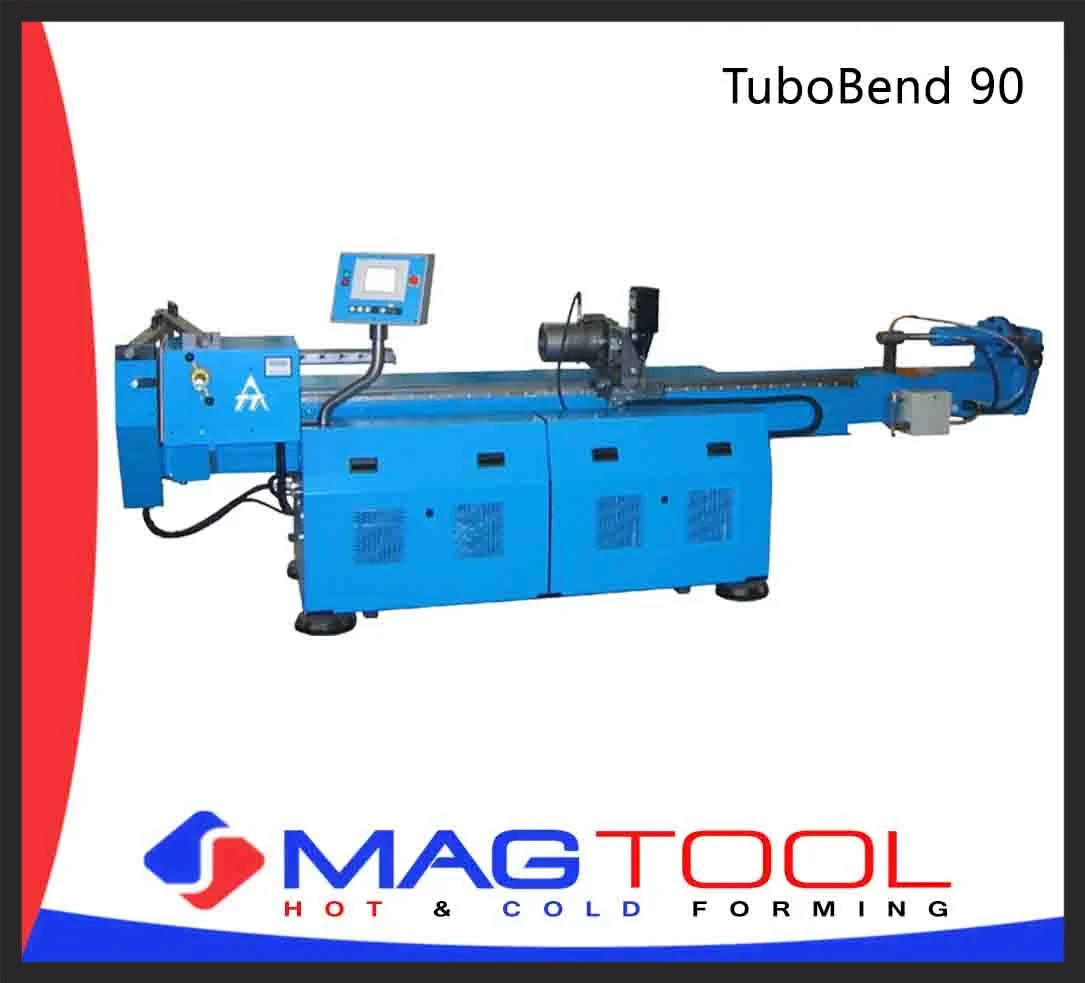

TuboBend 90

Basic equipment and features

  • Exposed bending head for maximum bending space
  • Electronic SIMATIC Touch Panel control with user guidance, automatic sequencing of the data records and storage capability for 100 bending programs
  • Hydraulic pipe clamping with adjustable clamping pressure
  • Hydraulic pressure die positioning (mechanical fine adjustment)
  • Follower-type pressure die (linear guiding)
  • Hydraulic mandrel retraction

Additional equipment, options and accessories

  • Positioning device for pipe length and rotation, incl. 3-jaw chuck
  • Hydraulic collet chuck
  • Adjustable bending speed
  • Pressure die assist
  • Automatic pressure die retraction
  • Length and rotation measuring system with digital display
  • Anticipated mandrel retraction for optimizing the bend quality
  • Mandrel lubrication device
  • Remote control or foot switch for bending and clamping function
  • Mobile control board
  • Interface for data import from PIPEFAB BE pipe bending software
  • Pipe bending software PIPEFAB BE for installation on an external PC
  • Interface for remote maintenance of the machine control via VPN
