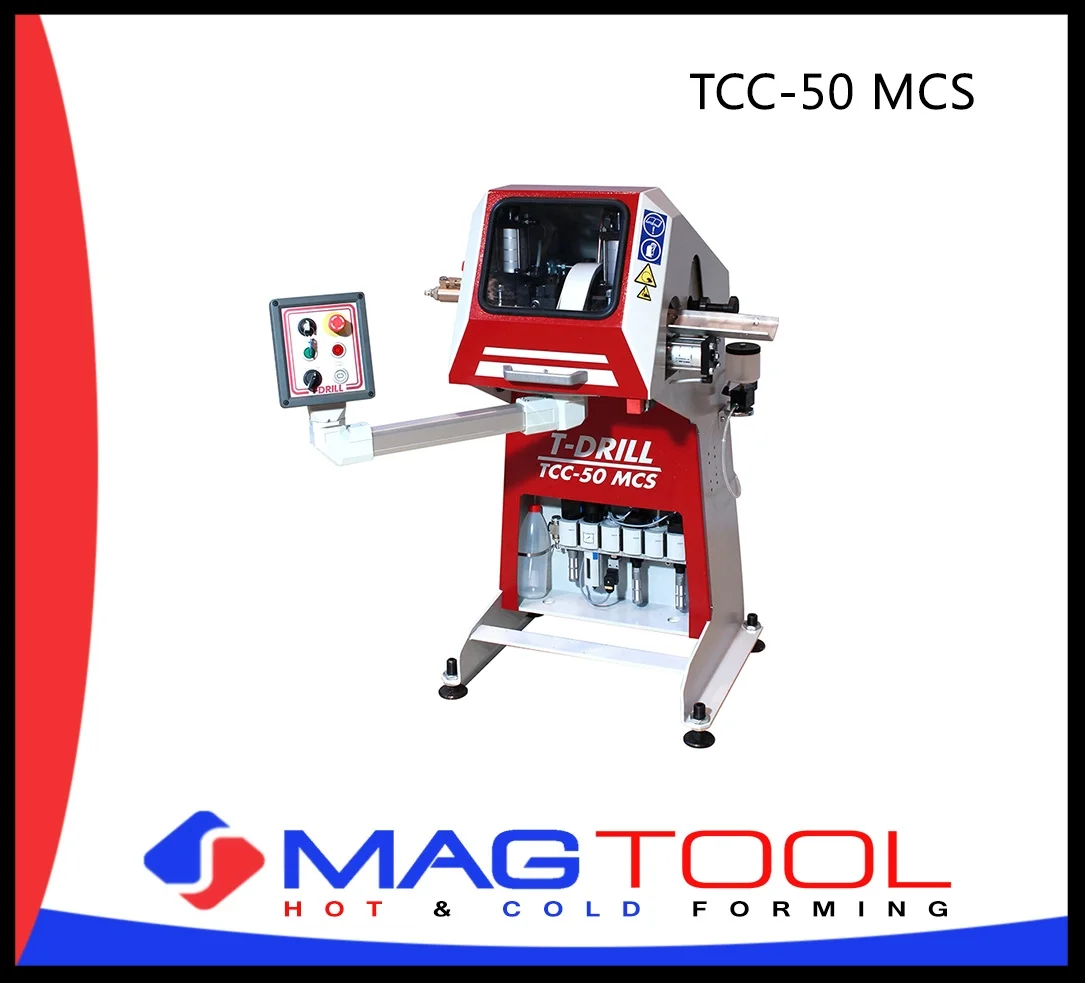

Model TCC-50 MCS

Standard Features

The TCC-50-MCS provides a cost effective solution for those needing the benefits of a chipless rotary cut-off but with lower volume requirements. The tube is fed manually by the operator to the adjustable stopper followed by automatic rotary cut-off. With a digital read-out the cut-length setting can be made fast and accurately. The tube diameter range is 1.5 – 45 mm. The machine is suited for copper, aluminium, brass, CuNi, mild- and stainless steel.

The Rotary cut-off eliminates chips, scrap, secondary deburring and part washing. It is ecologically friendly, quiet and fast cutting method. Minimal I.D. reduction is of vital importance for secondary operations such as mandrel bending and stand alone end forming. With TCC-50-MCS, this can be achieved by using a fast, two step cutting method. First the cutting disk penetrates 95% of the tube wall, and then the cut piece is separated by pulling it laterally apart.

Typical applications

There are a growing number of applications. For example, this method is used in:

  • Automotive brake and fuel lines
  • Heat exchanger applications
  • Automotive exhaust
  • Refrigeration
  • Solar panels
  • Heating

General Capacity

Material: Copper, Aluminium, Steel, Stainless steel, Brass, CuNi
Minimum diameter:  1.5 mm /0.06”
Maximum diameter: 45 mm/1.77”
Minimum cut length: 25mm / 75 mm with pull apart
Cut length tolerance:  ± 0.1 mm
Maximum wall thickness:  2.5 mm / 0.1”
