Model TCC-45 EF8

Standard Features

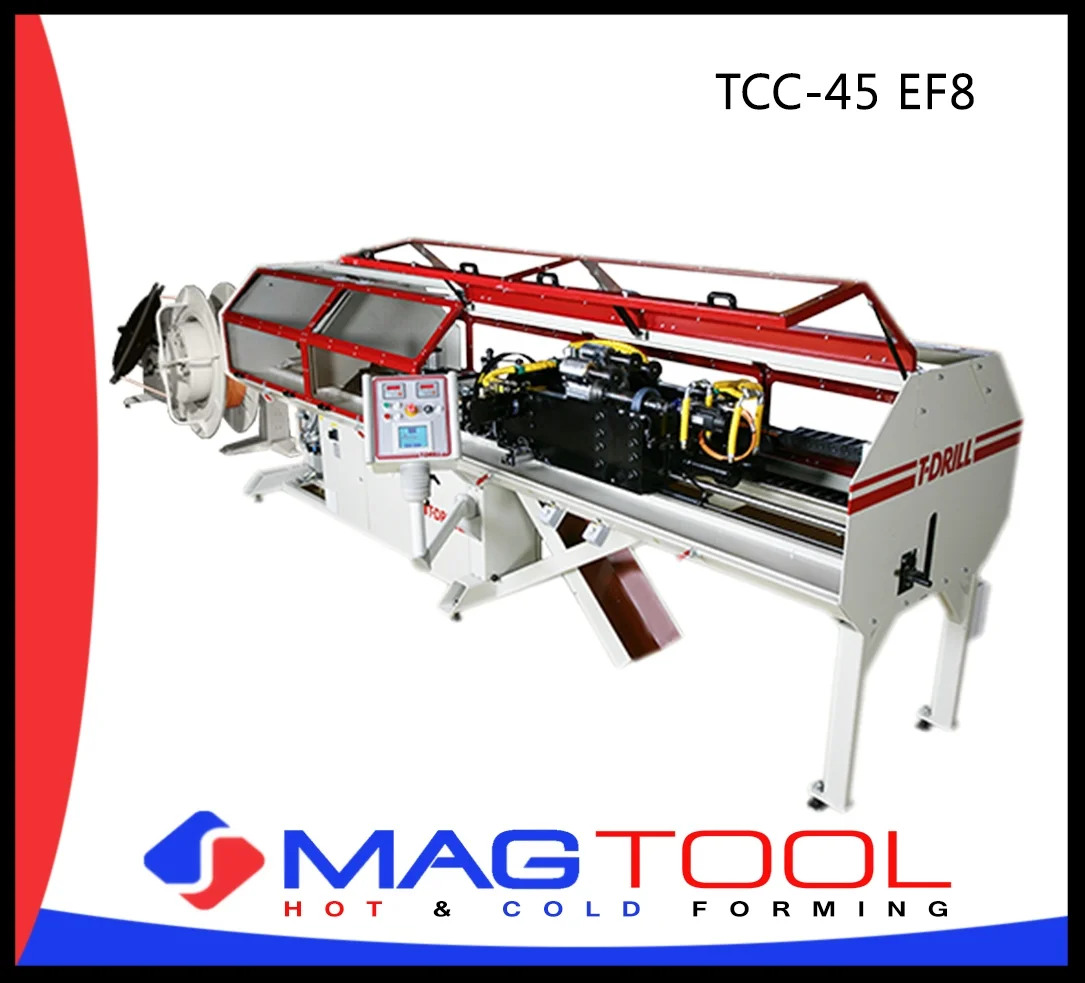

The TCC-45 EF8 is a heavy duty chipless tube cutting station with integrated hydraulic endforming.

TCC-45 EF8 has been designed for automatic chipless rotary cutting, grooving and endforming. All three operations are made simultaneously. This eliminates tube handling from cut-off machine to stand alone endformer. This means increased productivity, accuracy and quality. The system can be programmed for long production batch totally unmanned.

Machine is equipped with six forming stations that are cabable of forming most standard forms with one set-up of tooling: beads, O-ring beads, flares, hose couplings, expansion, reduction, etc.

Materials:
Copper, Aluminium, Mild- and stainless steel.
Tube diameters:
6 - 22 mm (1/4” - 7/8”)
Tube lengths:
40 - 915 mm (1 ½” - 36”) with simultaneous cutting and endforming
915- 6000 mm (36” - 236”) endforming takes place before cut-off operation
Examples of production rates:
Cutting only 1125 - 2250 pcs/h for 40 - 915 mm lengths
1-hit endforming 900 - 1380 pcs/h for 40 - 915 mm lengths
2-hit endforming 800 pcs/h for 40 - 915 mm lengths
3-hit endforming 520 pcs/h for 40 - 915 mm lengths
6-hit endforming 280 pcs/h for 40 - 915 mm lenghts
8-hit Endforming 200 pcs/h for 40 - 915 mm lengths
Endformer specification:
Hydraulic, max 8 stations/tools
Adjustable clamping force
Adjustable ram force up to 4,5 tons
Standard or springloaded forming tools (clamps + punches)
