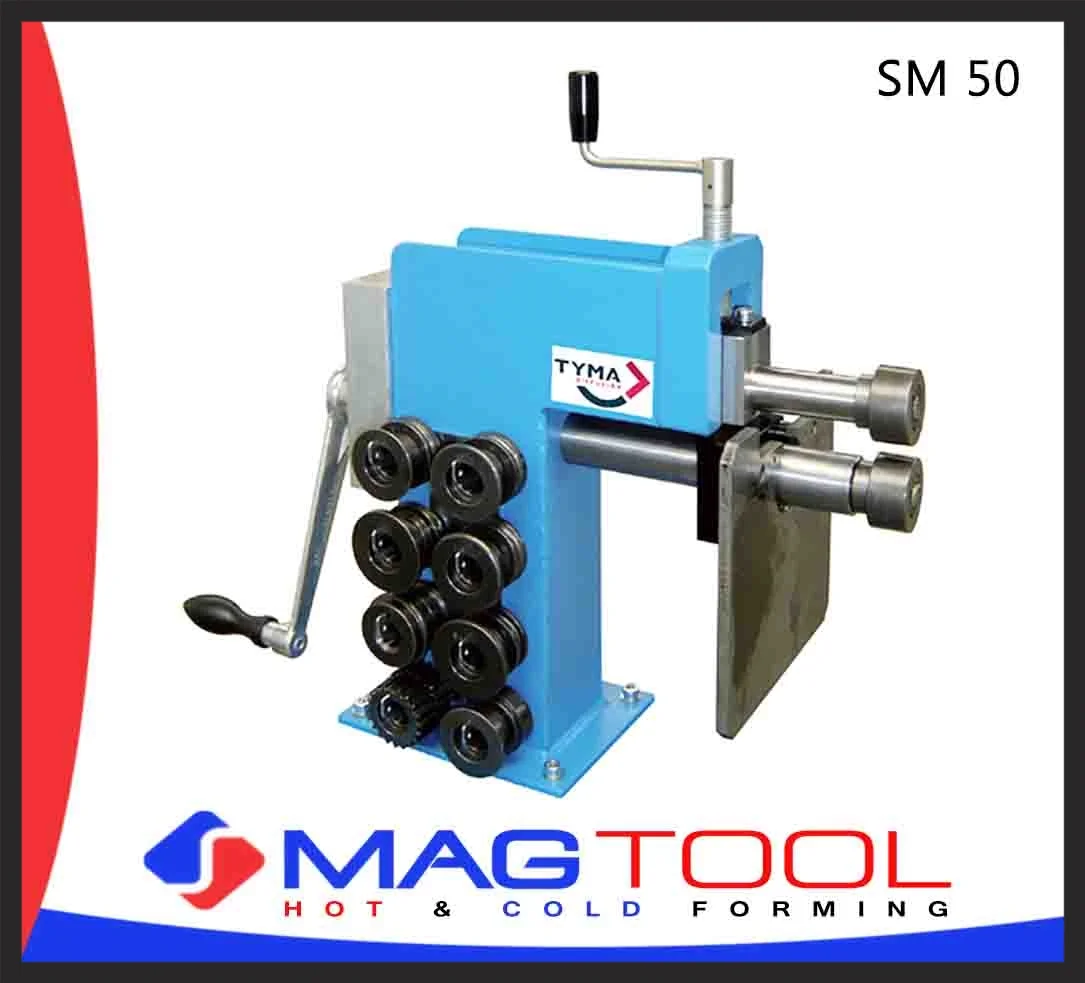

SM 50

General Information

The beading and flanging machines SM and SME 50-63 are light-weight,  transportable machines and are available with manual or a motor driven drive. The manual feed of the upper roll offers not only a sensitive operation of the workpiece but also the processing of complex forms. The adjustable and hardened stop plate offers additional forming alternatives and improves the repeatability of repeating workpieces.

The lateral mounted roller support is the ideal repository for storing up to 9 pairs of rolls safe and clean. Optional, for all machine sizes, a sub frame is available, which provides a safe stand of the machine.

The motor driven machines (SME) are driven by a infinitely variable foot switch. By a selector switch you are able to chose two different speed ranges.
