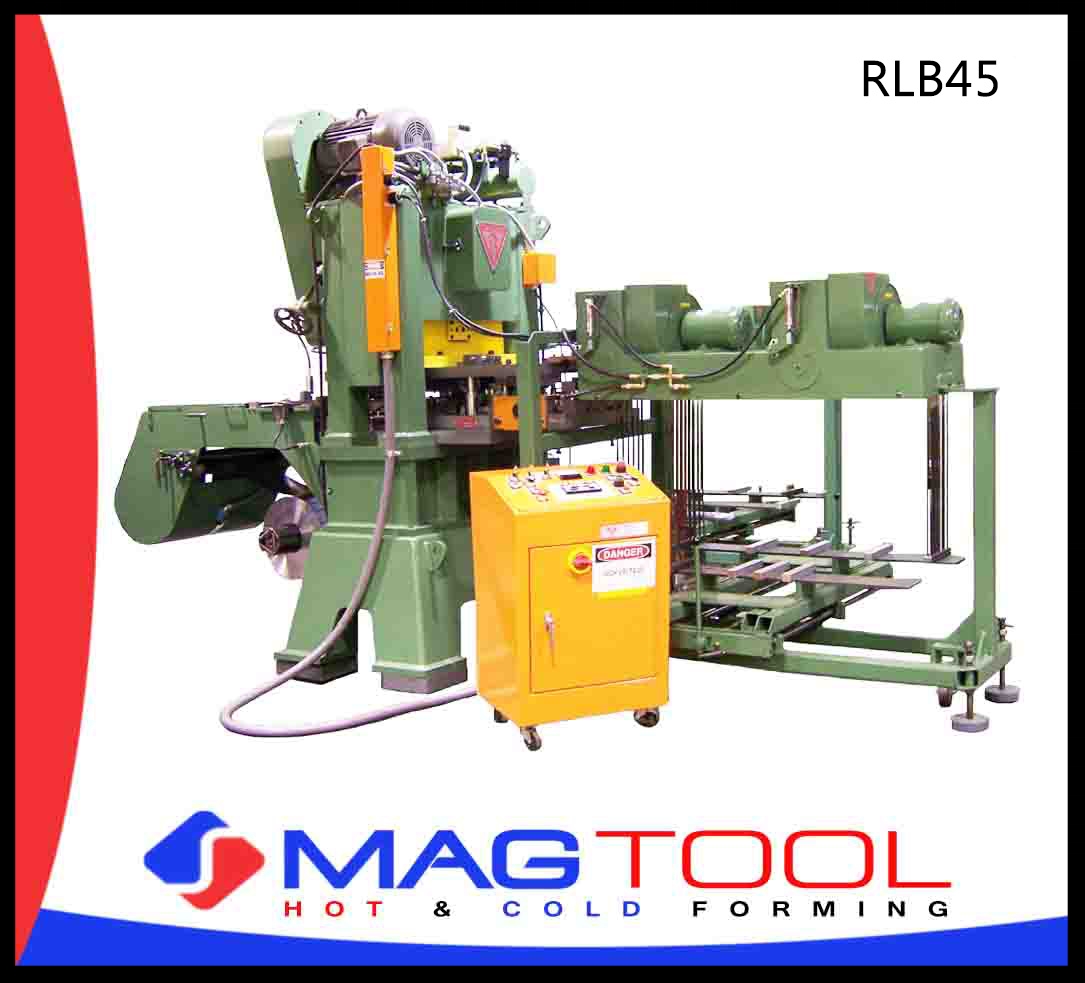

Tridan RLB45

General Information

The Tridan Model RLB45 FIN LINE has been designed with the low to medium volume producer in mind. This Fin Line can be equipped with a large variety of Fin Dies, which are used to stamp plate type fins for heat transfer coils.

The model RLB45 Qual-Ekon Fin Line is one of a family of Fin Lines by Tridan for ribbon-type fin die applications.
The RLB Press Series is designed for use with the Model RDVS Ribbon Fin Die, which employs Tridan’s patented Self- Contained Pull-Type Die Feeding System. The combination of the RDVS Fin Die and the RLB Fin Line has helped in eliminating the concept of “captive” dies within the fin press, since coil manufacturers are able to use several Fin dies in one fin line.
