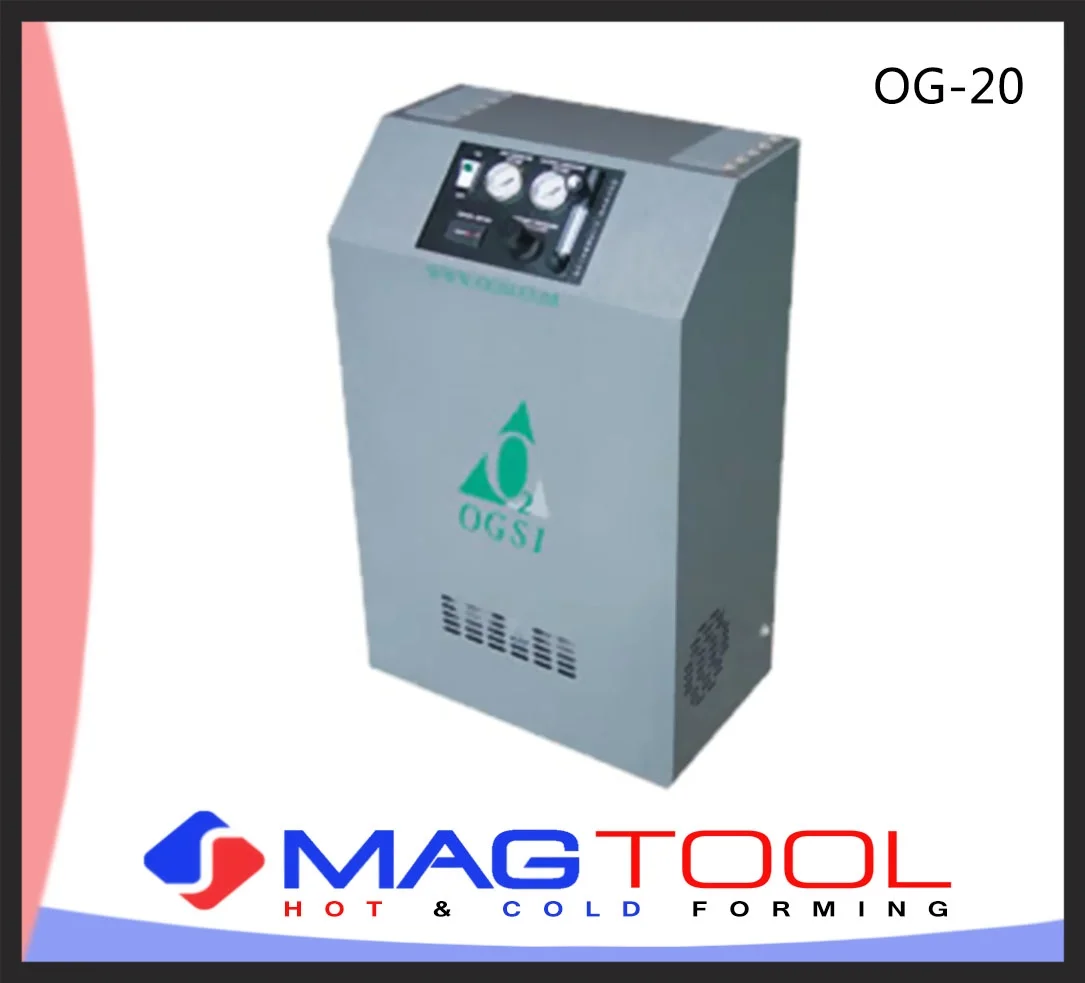

Model OG-20

Simple to Use and Maintain
With a lighted on/off switch, integrated control panel, digital hours meter, custom flow gauges and controls, the OG-20 is truly user-friendly. Just plug it in, place the on/off switch in the “on” position, and set your oxygen delivery flow and pressure. The molecular sieve/zeolite (which separates the oxygen from nitrogen) is regenerative, and should not need to be replaced for the life of the unit under normal operating conditions.

Original Equipment Manufacturer (OEM) Configurations
For integrators, the OG-20 OEM is available.  This basic configuration includes the sieve beds, timing board, and a valve secured to a mounting plate for easy installation in the purchaser's enclosure.  The benefit of this OEM design is it provides a lower cost option to customers who want to supply their own feed air, instrumentation, and enclosure for a total oxygen producing package to end users.

OG-20 Modifications/Options Available:
* 230 VAC/50/60 Hz Model
* Reduce Noise Option
* Extra Inlet Air Filter
* Set of Anti-vibration Feet (4)
* Set of Casters (4)
* Pressure Switch and Relief Valve (psi deviation)
* Bacteria Filter (Installed)



Oxygen Generating System
Evolved from the extremely popular OG-15 model, the OG-20 extracts oxygen from the atmosphere, concentrates it to 93% (± 3%) purity, and delivers the oxygen to any application. The OG-20 offers up to 25% more oxygen flow rate and delivery pressure.

Dependable
The OG-20 is completely self-contained, and its overall design is built for 24 hour operation. It produces up to 20 standard cubic feet per hour (SCFH)/ 10 liters per minute (LPM) at 1-20 PSIG, with oxygen purities up to 95%. The total industrial strength and quality of the OG-20 will provide the end-user with years of dependable, reliable, and virtually maintenance-free operation.

Durable
The OG-20 is built on a powder coated steel frame/chassis. Its internal air compressor, aluminum sieve beds with state-of-the-art molecular sieve material, filtration and flow of control systems are designed for years of continuous and reliable service. Each OG-20 goes through rigorous quality control testing procedures. Weighing only 80 lb (36 kg) the OG-20 is available in 115 VAC/60 HZ, 230 VAC/50 HZ and 230 VAC/60 HZ models for use worldwide!
