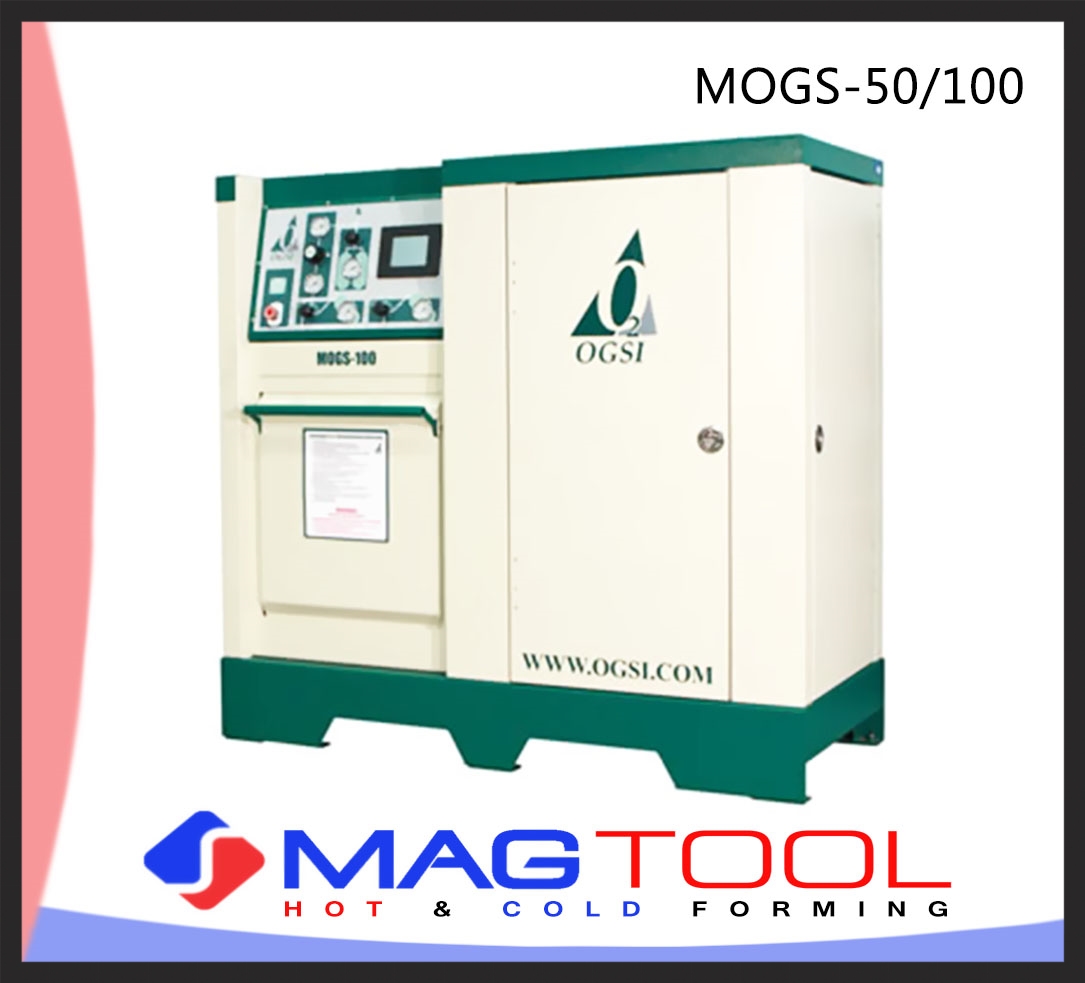

Model MOGS-50/100

Standard Features
• Emergency - stop button
• PLC controller with NEMA 4 electrical
enclosure and UL® listed electrical panel
• Touchscreen operator interface panel
• Two H size oxygen cylinders installed
in an integral rack
• Sound attenuating enclosure with
slam-action latches and lift-off hinges
• Two position containment fill station
accommodates oxygen cylinders up to
31" overall length

• Remote fill hose reel with 75 ft of
high pressure 3000 psi hose for re-filling
cylinders on ambulance without having
to remove them

General Information

The OGSI MOGS-50/100 Medical Oxygen
Generating System has been designed to produce
oxygen onsite and fill high pressure oxygen cylin-
ders. e system produces Medical Grade Oxygen
in accordance with the USP specifications (see
reverse). ere is a continuous gas quality monitor-
ing system included with automatic shutdown if a
fault occurs.

Cost Reduction
is system will reduce oxygen supply costs by 80%
or more in most cases. Less than 1 Kwh of energy is
required to fill one 'M'-size oxygen cylinder and all
delivery and handling charges from your current
supplier are eliminated.

Disaster Preparedness
By making and filling cylinders at your site the
uncertainty and logistics of delivered oxygen
supplies are eliminated. With this system in place
care providers are also assured that in the event of a
disaster their oxygen supply chain will not be in
jeopardy. e system itself can also be transported
for use at a disaster site. It can be moved by truck
and fits easily through a standard 36" wide doorway.
