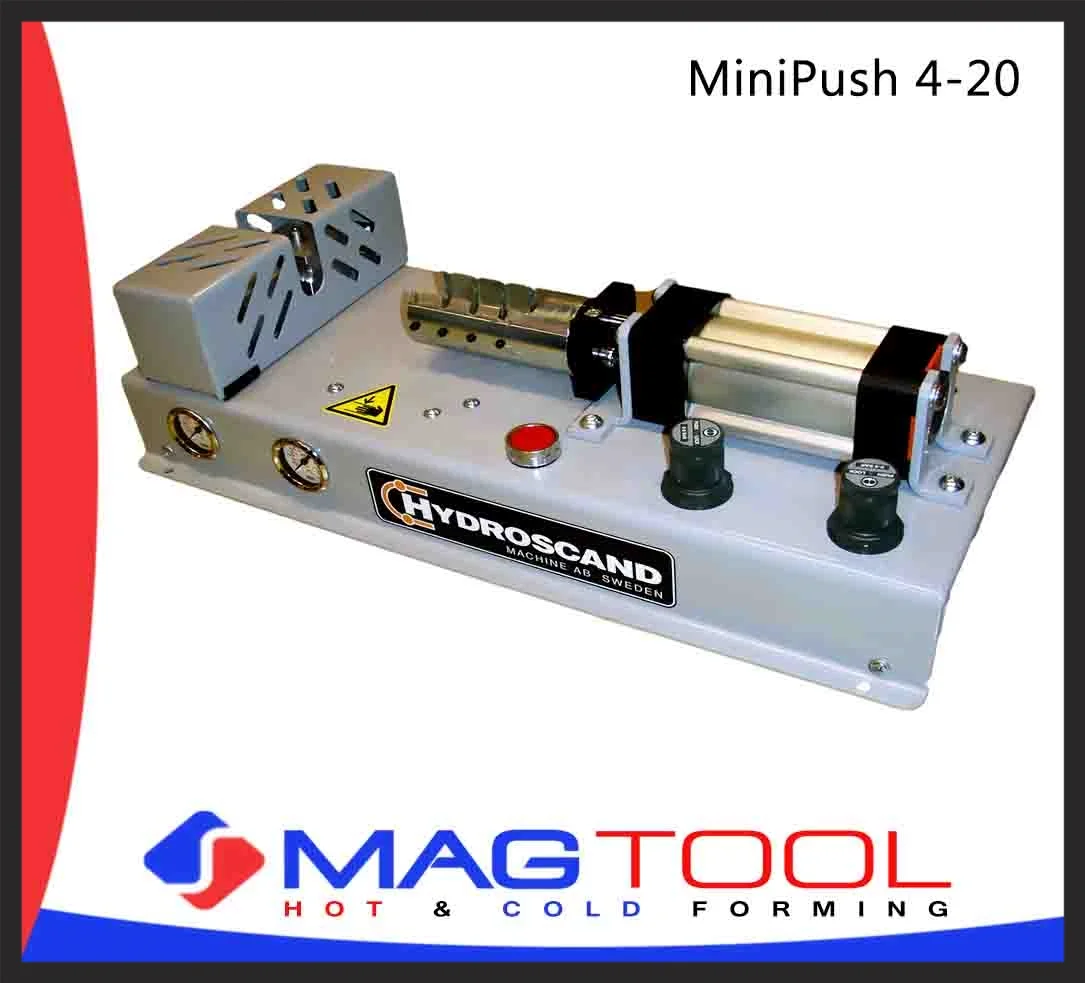

MiniPush 4-20

General Information

MiniPush is a pneumatically operated hose nipple insertion machine, designed for hose dimensions from 1/8" to 3/4". The machine is fast and very easy to use. The gripping- and pushing force can be controlled to fit different hose types.

Technical data:
Hose/fitting capacity 1/8" to 3/4"
Push-on capacity (theoretical) 1500 pcs/hour
Force at 8 bar 1100N
Air pressure 6-8 bar
Colour Light grey RAL 7040

Dimensions:
Width 535 mm
Depth 240mm
Height 150mm
Weight (excl. tools) 12 kg

Part number: 9085-00-00
Standard set of tooling included in the machine
