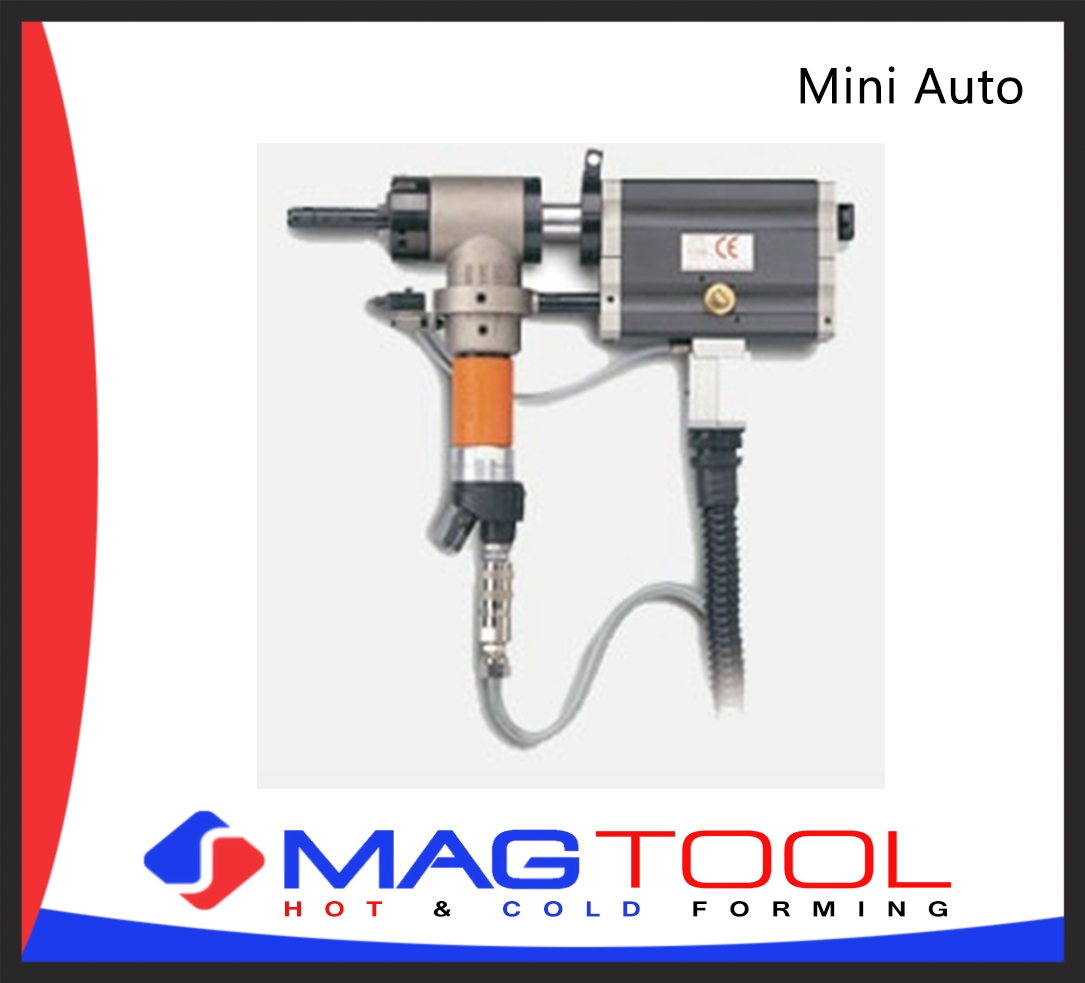

GBC Mini Auto

Standard Features

Completely automatic machine, triggered by foot switch, ideal for heavy duty cycle and repetitive works on heat exchangers and condensers.

The pipe bevelling machine is specifically designed for precision tube trimming, weld removal and tube plate preparation for retubing. Adjustable automatic feed rate.

The sensor automatically stops the cut each time at desired distance and returns the cutter head to the original start position.

RANGE:
20 - 42 mm i/d (optional from 12,5 mm).

FUNCTIONS:
Bevelling, facing, counterboring.

MATERIALS:
Any kind of steel.

POWER:
Pneumatic

NOTE:
This pipe beveler is a unique machine specifically designed for the facing back of tubes and seal weld removal in heat exchangers, condenser, etc. ideal for high volume repetitive work. This model has an automatic feed and stop. All these operations are simply activated by one press of the foot pedal.
