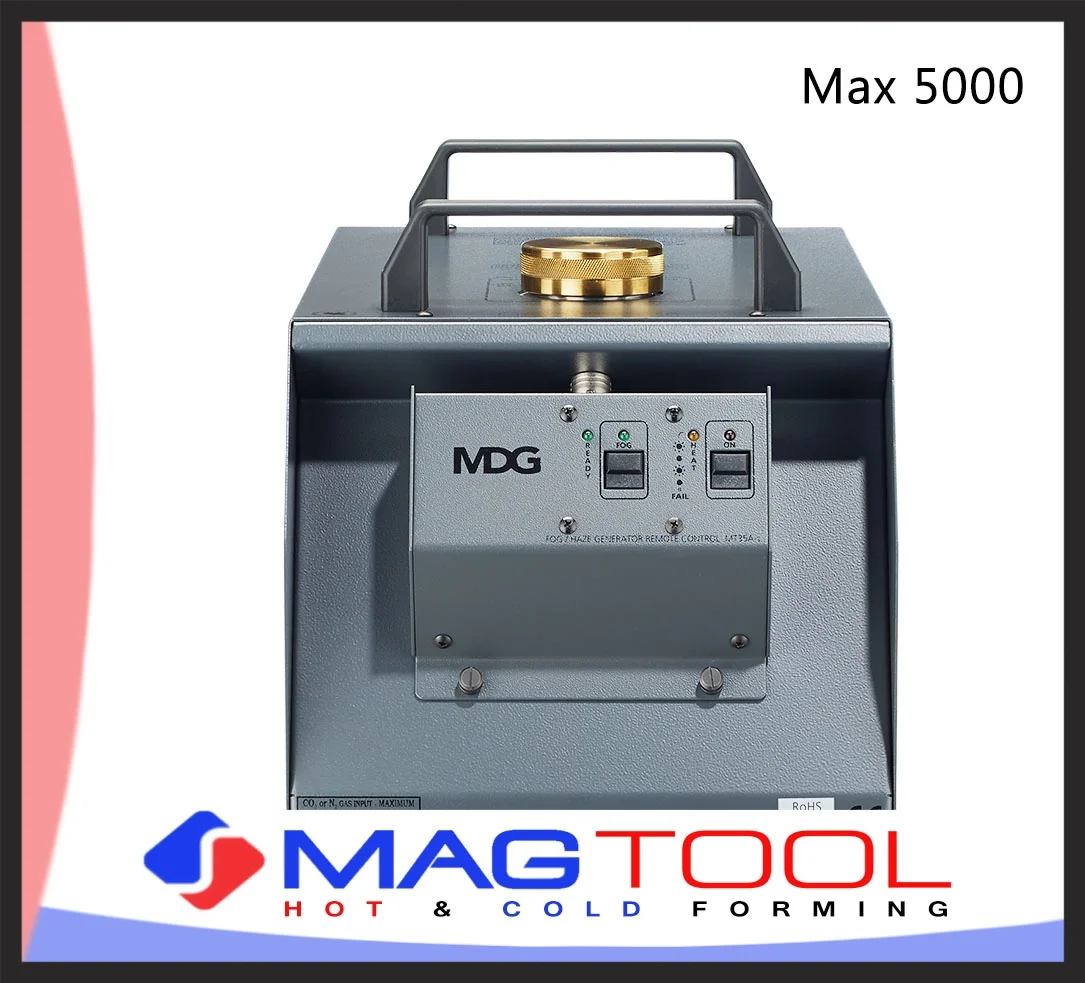

Max 5000

Standard Features

  • Very powerful, manually adjustable fog output

  • Maximum fog output up to 218 m3 (7,680 ft3) per minute

  • Automatic Purging Systemโ„ข (APSโ„ข) to prevent build-up and clogging

  • Virtually noiseless, with the finest fog and the longest hanging time

  • Detachable remote control and 8 m (26 ft) cable included

  • Compatible with DMX interface and remote control timer

Specifications

Maximum fog output per minute                                                               218 m3 (7,680 ft3)

Fluid consumption                                                                                         2.6 L (77 oz) per hour at 2.76 bar (40 psi)

Gas type                                                                                                            CO2 or N2

Gas consumption                                                                                           2.25 kg (5 lb) per hour at 2.76 bar (40 psi)

Reservoir capacity                                                                                        2.5 L (0.66 US gallon)

Automatic Purging Systemโ„ข (APSโ„ข)                                                      Standard feature

Fog colour                                                                                                        Pure white

Particle size                                                                                                     0.5 - 0.7 microns

Warm-up time                                                                                                8 minutes (maximum)

Fluid type                                                                                                         MDG Neutral Fog Fluid (SDS available on request)

Operating voltage                                                                                         115 or 230 VAC, 50/60 Hz

Power consumption                                                                                      1,415 W
