General Information

Chrome and Ampco Bronze mandrels in 46 sizes (.375" O.D. to 3.0" O.D.)

Tube bending has come a long way since wet-packed sand cerrobend or cable mandrels. In addition to the basic mandrels described below, TFB has designed these and many other specialty hybrid materials: hydroforming, wave guide, tube-within-a-tube, bend-on-a-bend, sizing, bullet-nosed, plastic, and sheathed materials.

Among the many factors which influence the type of mandrel selection and number of balls, these are the most important considerations:

◦"D" of Bend (center line radius ÷ tube O.D.)
◦Wall Factor (tube O.D. ÷ wall)
◦Ovality and wall thinning requirements
◦Tubing materials
◦Cosmetic considerations
◦Size and location of weld flash

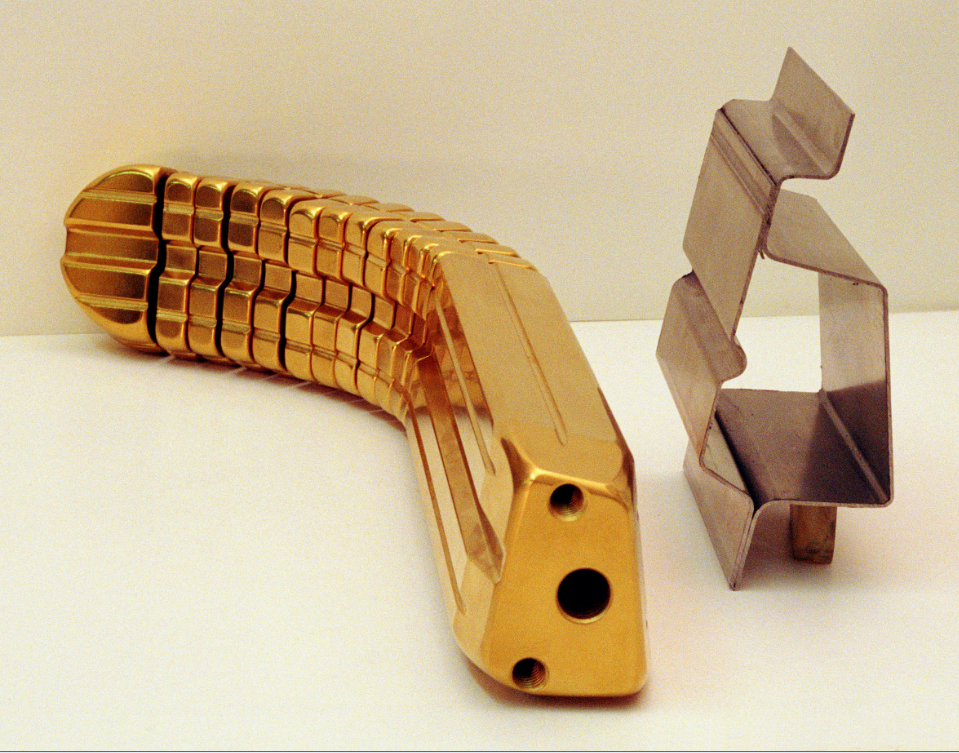

We provide a selection of mandrels for any conceivable requirement. We also furnish the "H" style universal flexing, link mandrels. Our single-plane "Brute" mandrel has superior strength and straight ball alignment; ideal for high production or larger tubes. Mandrels are available for literally any size of tube/pipe, as well as any square, rectangle, or shape. All mandrels are available in standard pitch, close pitch, or for extremely thin wall tubes, the ultra-close pitch configuration. Mandrel materials are Ampco bronze or tool steel. Steel mandrels can be hard-chrome plated, Kro-Lon® plated, or titanium nitrided.
