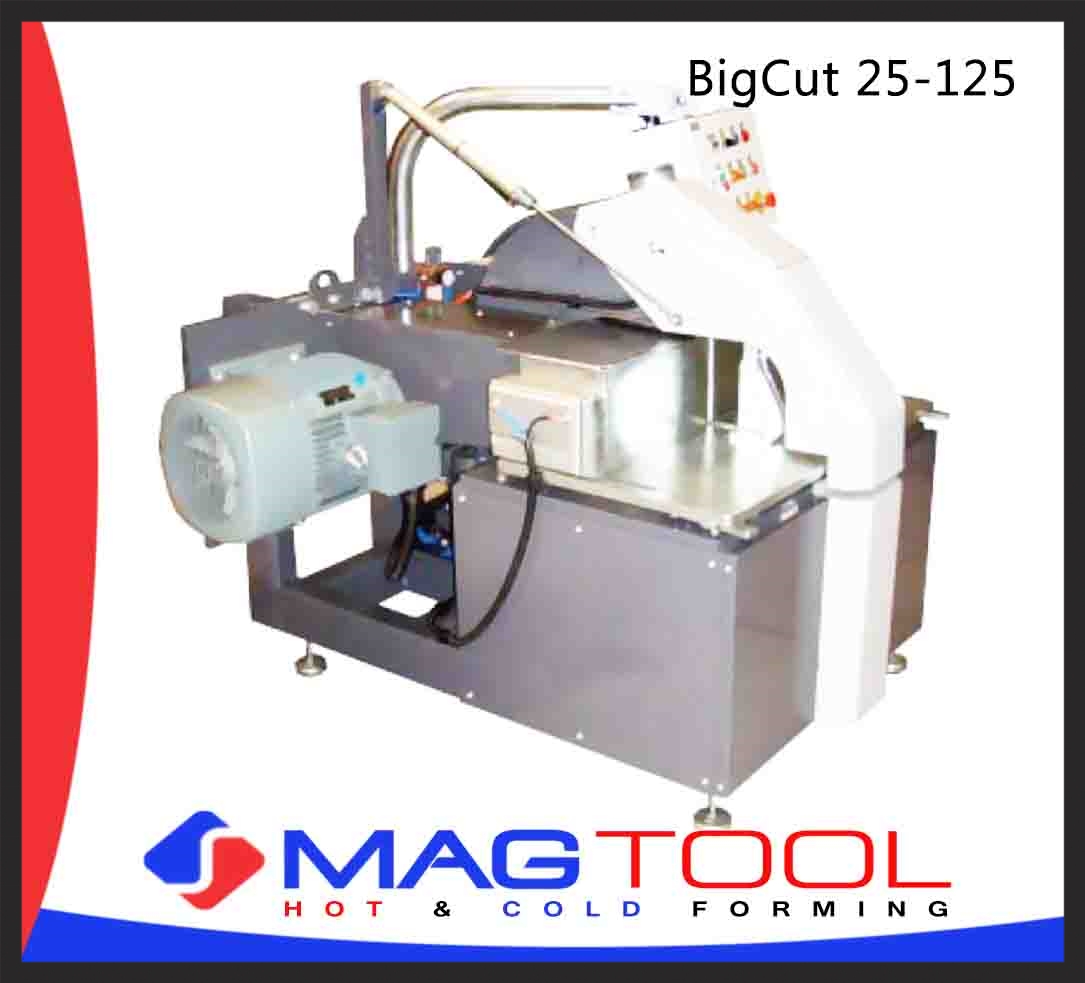

Big Cut 25-125
The BigCut is a semi automatic heavy duty cutting machine designed to cut even the toughest hoses. It has a semi automatic hood protection, adjustable feeding- and prebend-system and an integrated cooling system for best cutting result. It is prepared with a smoke evacuation connection, a 15kW* motor and a large Ø600 mm cutting blade to ensure cutting hoses with maximum outer diameter 180 mm.
Hose Capacity - steek wire: 1" - 6"
Hose Capacity 10 layers: 1" - 3 1/2"
Max. hose diameter OD: 180 mm
Diameter (blade) External: 600 mm
Diameter (blade) Internal: 80 mm
Connection to smoke evacuation system: 100 mm
Colour: Light Grey
Length: 1430 mm
Depth: 1250 mm
Height: 1370 mm
Weight: 790 Kg
