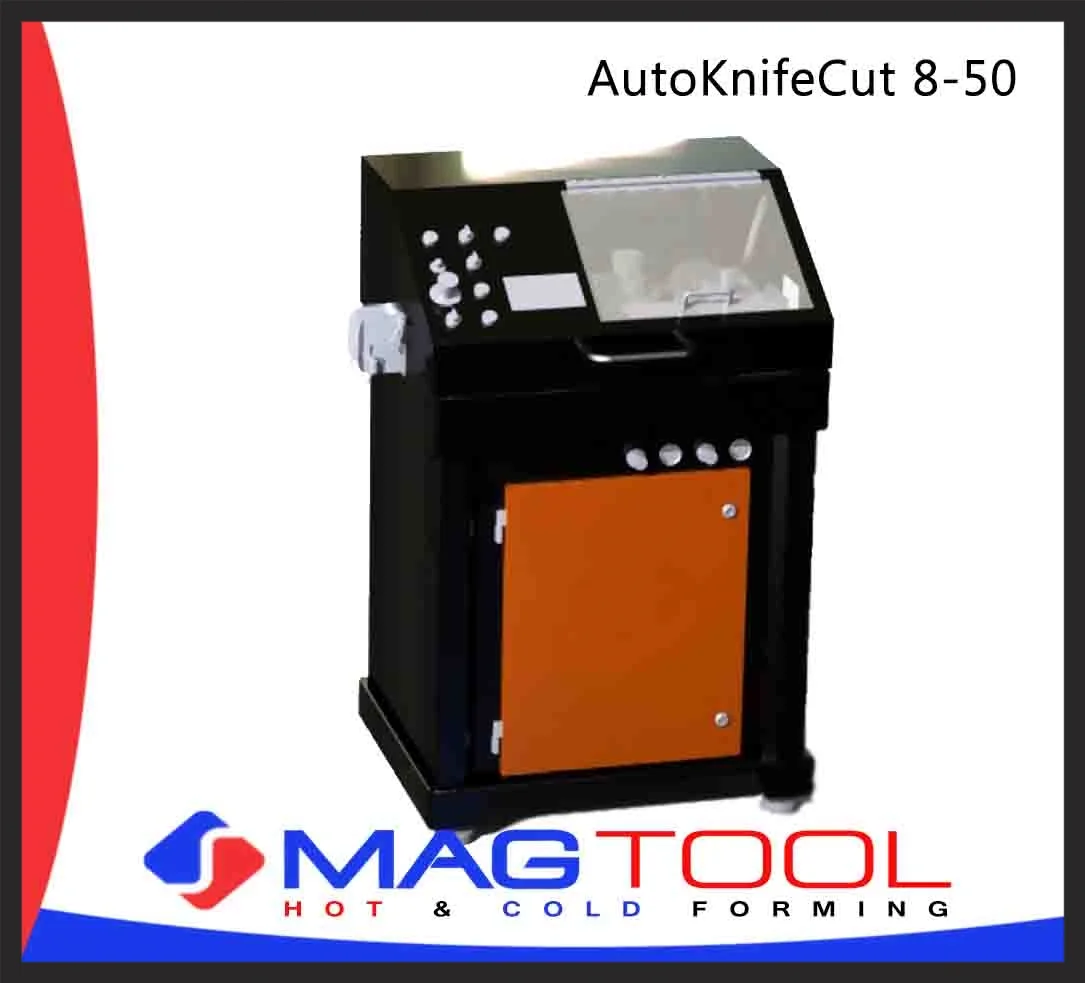

AutoKnifeCut 8-50

General Information

The AutoKnifeCut8-50 is a fully automated hose cutter for cables, polyamide tubes and textile reinforcement hoses up to OD 50mm. It is very easy to use thanks to the touch screen and has excellent length tolerance. Hose Reel and conveyor are optional, available in different design to meet your request.

Advantages: - Fast and easy operation. - Adjustable feeding speed - Excellent cut tolerance - Safety system to protect the operator - Fast and easy tool change. - No rubber waste in the hose - Perfect cutting angle - PLC-controlled - Fast and simple operation -Tool-set for 6 dimensions as standard - Fast tool exchange, no adjustments necessary - Cutting tool completely encased.

Technical data: Capacity on cables, polyamide tubes and textile reinforcement hoses 8-50 mm Feeding motor 0.5 kW Voltage single phase 230V/16A/50Hz Cutting capacity/hour up to 800 pcs Feeding speeds 100-500 mm/s. Max. cutting length 32000 mm Cut tolerance According to DIN 20 066 Cutting device Pneumatic cyl./ sharp knife Air pressure min. 6,0 bar Dimensions: Length 880 mm Depth 750 mm Height 1250 mm Weight 150 kg
