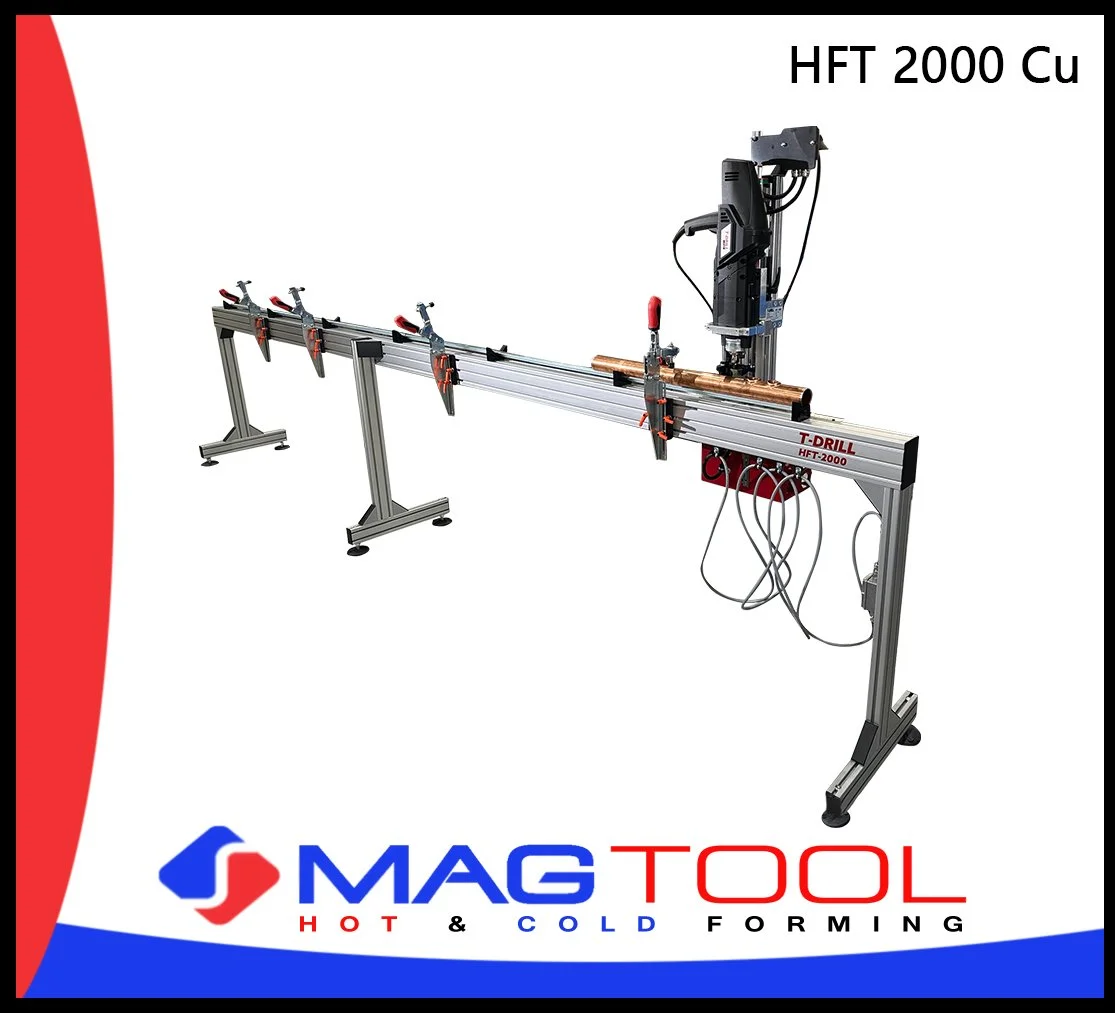

HFT 2000

General Information

Bent tubes can be fixed to the table, too.

The standard version is for 79 “ long tubes. The capacity of the basic HFT can be increased with optional 79” extension modules that easy to install. Basic HFT can be extended with as many modules as needed.

With the HFT 2000 you can produce twenty 1 1/8" outlets in less than ten minutes without moving the tube. The device can be used also for short tube lengths by furnishing the feed table with corresponding clamping systems. T-65 HFT is capable for producing collars 3/8" - 2 1/8" in run tubes from 5/8" -4". More details can be found in the capability chart in the 'Technical Information'.

T-DRILL collars give the most reliable tube joints being used with the most extreme applications. Use T-DRILL - no leakages.

The following additional modules are available optionally:

  • Rotary Module

The rotary module is an option, when making collars with different angles. The standard rotary module has intervals of 15 degrees. Any other degree interval is possible when using a different template. The templates are easy and quick to change when needed.

  • Measure Module

The optional measure module increases the usability of HFT, when collaring individual mixed size products. The measure module shows the distance in a digital display. The module can be fixed easily to the collaring unit with a locking knob.

  • IPC Module

Hand Feed Table (HFT) basic unit can be equipped also with a pneumatic operated Internal Punching Unit (IPC), for producing 1/4", 5/16", 3/8" and 1/2" O.D. “IPC tees” with fixed tooling.
