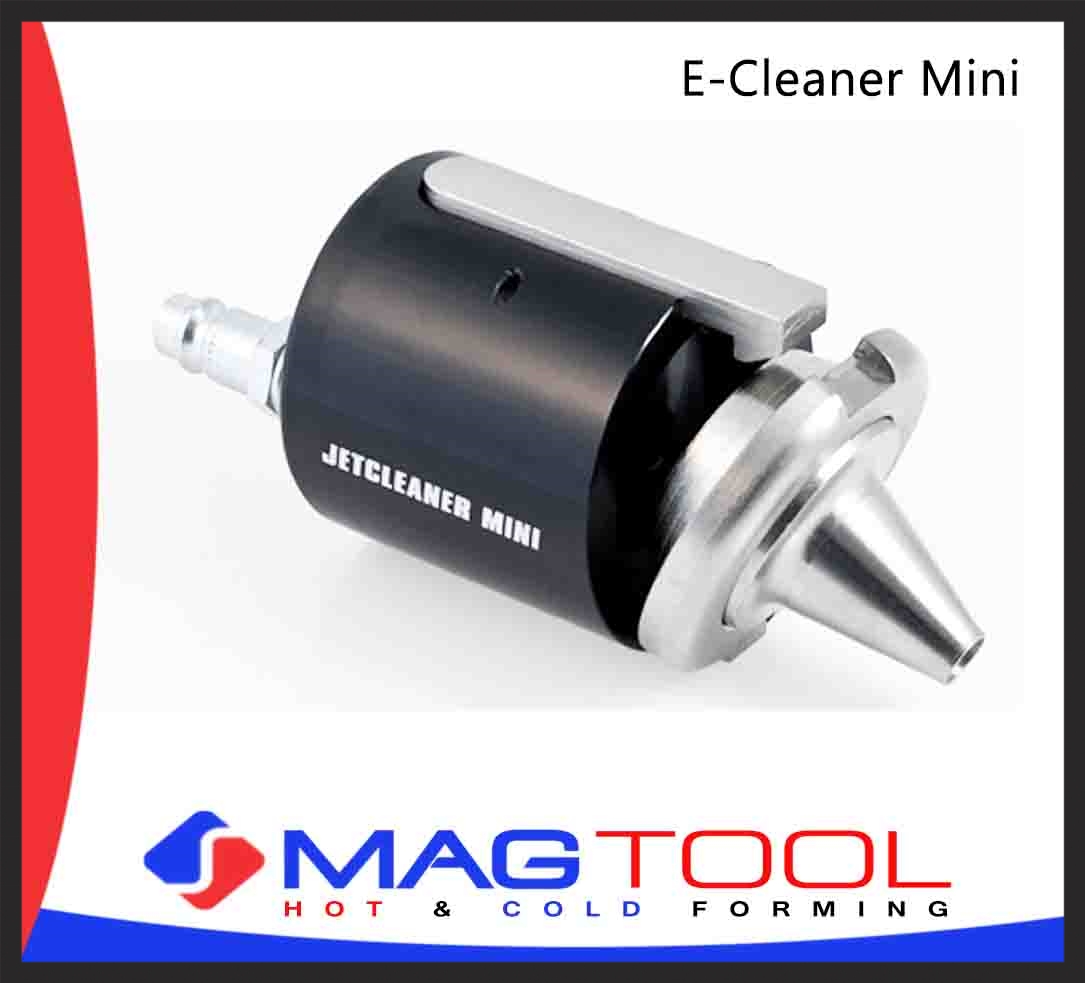

E-Cleaner Mini

Designation

9035-01-01: E-Cleaner MiniJet pistol, excl. nozzles
9035-00-00: E-Cleaner MiniJet complete case, incl 9 pcs hose nozzles
9035-00-01: E-Cleaner MiniJet complete case, incl 9 pcs optional tube nozzles

Hose Nozzles
Material: Thermoplastic, black

9035-02-03: 3/16"
9035-02-04: 1/4"
9035-02-05: 5/16"
9035-02-06: 3/8"
9035-02-08: 1/2"
9035-02-10: 5/8"
9035-02-12: 3/4"
9035-02-16: 1"

General Information

The e-cleaner Mini system effectively cleans all types of hoses and tubes with a minimum of effort and time. The system uses a foam plug which is propelled through the hose/tube by compressed air and the outer diameter of the plug approx. 20% larger than the inner diameter of the hose/tube. Hose nozzles are available from 3/16" to 1" and tube nozzles from 4 mm. to 30 mm.

Technical Data

Hose capacity: 3/16" - 1"
Tube capacity,ID: 4 -30 mm
Max length: Up to 100 metre
Purity level ISO4406: ISO 20/17
Air pressure: min.6 bar

Tube Nozzles
Material: Thermoplastic, black

9035-06-04: 6 x 1,0
9035-06-03: 6 x 1,5
9035-08-05: 8 x 1,5
9035-10-07: 10 x 1,5
9035-10-05: 10 x 2,5
9035-12-09: 12 x 1,5
9035-12-08: 12 x 2,0
