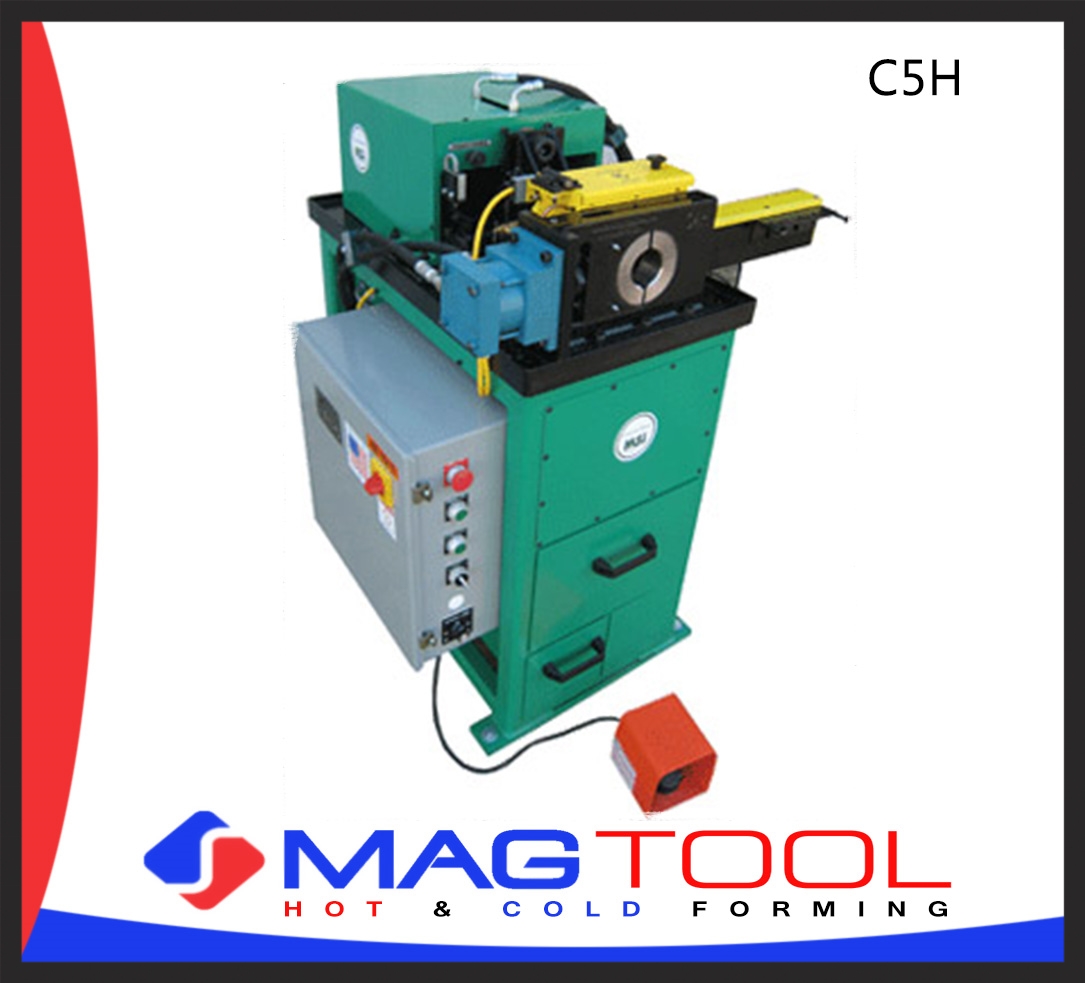

MSI C5H

General Information

  • Heavy duty features for beveling thick wall pipe and tubing including J-bevels
  • Rigid design for heavy cuts
  • 24.000 (w) x 35.500 (d) x 60.000 (h) inches approx.
  • Weighs 1400 to 1500 lb
  • Head runs on linear ball rails
  • Three bearing spindle
  • Infinitely variable speed drive and feed controls
  • Dependable hydraulic clamping and spindle feed
  • Additional machines available for up to 8.000 inch pipe

Standard Features

  • Up to 5.000 inch OD capacity (4.000 inch pipe)
  • 5 HP motor standard
  • Electronic variable speed drive
  • Self contained hydraulic system with fine feed adjustment
  • · Sliding stop
  • · 3 tool heads for OD, ID and facing
  • · Totally enclosed cutting area
  • · Compact design
  • · Through-The-Spindle stop rod
  • · Quality construction
  • · Name brand components for dependable service


Available Options

  • Custom heads and tool holders designed to fit your application
  • 7.5 HP motor
  • Coolant
  • Center stop rod for solid parts
