Tridan BTH

General Information

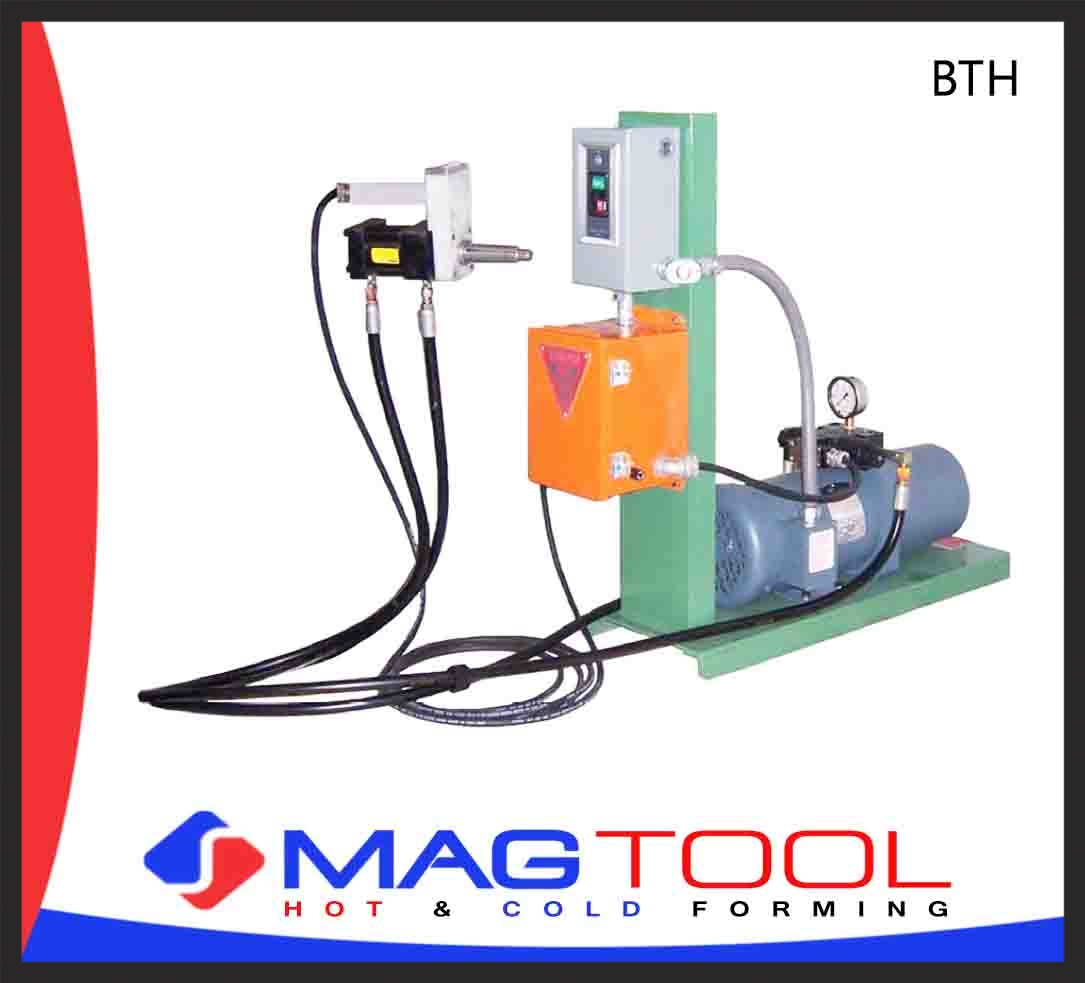

This Tridan Model BTH Tube End Sizer is a hydraulically driven device that is specially designed for belling the end of heavy wall tubing. An electrical solenoid valve is used to control the hydraulic operation.

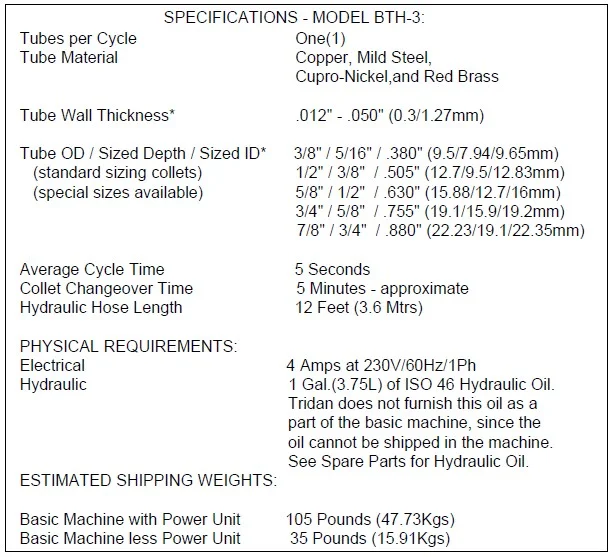

The TRIDAN Model BTH-3 TUBE END SIZER is a portable hand-held device designed for the sizing of copper, mild steel, cupro-ickel, and red brass tubing of diameters 3/8" (9.525mm) to 3/4" (19.05mm). Its operation is extremely simple with the operator placing the specially designed expanding collet inside the tube end to be belled or sized, activating the thumb switch, and the tube end being belled to the pre-set inside diameter.
