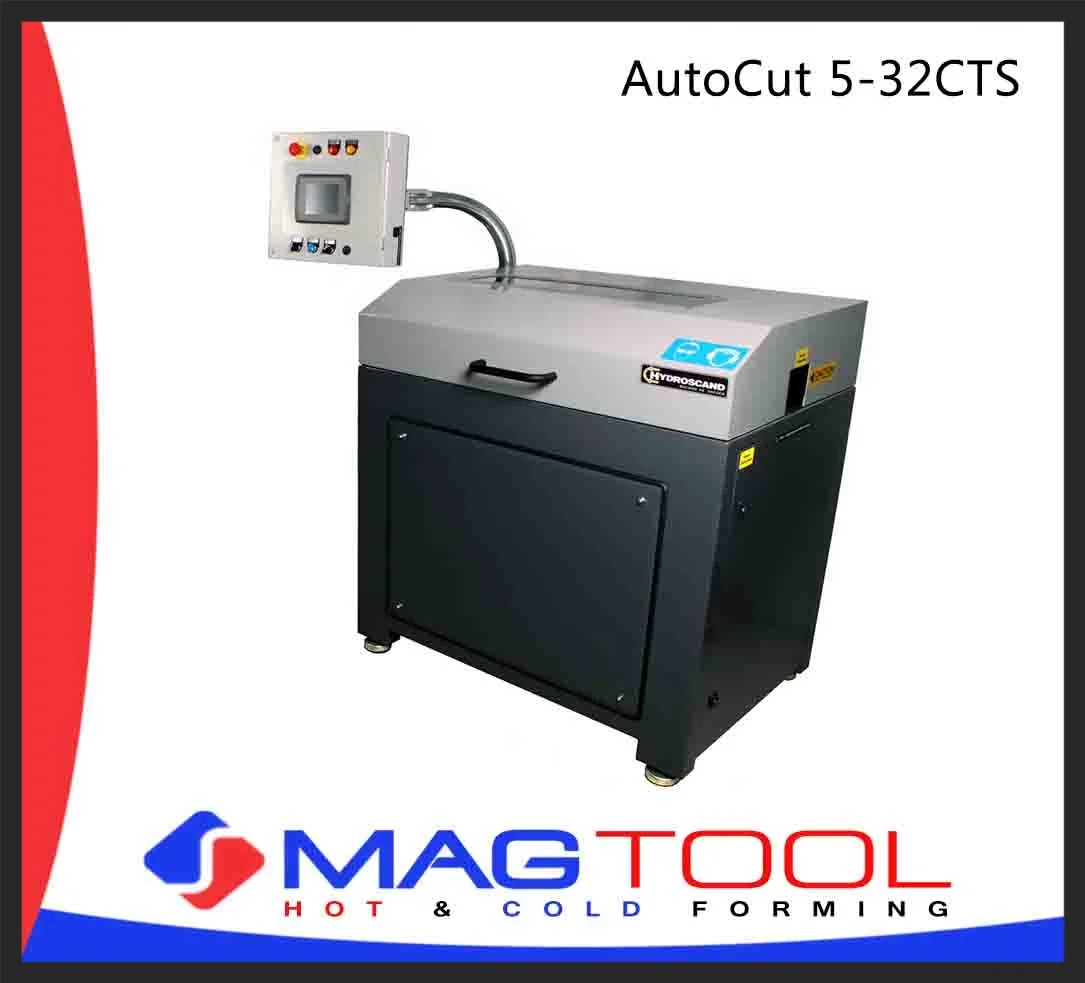

AutoCut 5-32CTS

Technical Data
Min/Max hose diameter OD: 8-50 mm
Cutting capacity: 480-700 pcs/hour
Max load hose reel: 400 Kg
Max. cutting length: 99999 mm
Motor: 5,5 kW
Voltage: 230/400V/25A/50Hz
Diameter (blade) External: 520 mm
Diameter (blade) Internal: 38 mm
Air pressure: min. 7 bar
Hose connection for smoke evacuation system: 100 mm
Colour: Light Grey/Dark Grey



General Iniformation

AutoCut 5-32CTS is an automatic cutting machine for textile and steel reinforced hoses. The machine is easy to operate because of the logic control unit and LCD-display. The workflow is optimized by adding the hose reel and the conveyor unit.

Advantages

  • Fast and easy operation
  • Safety system to protect the operator
  • Computer controlled process (PLC)
  • Colour touch-screen control
  • Storage capasity of 1200 part no
  • Cutting tolerance much better than according to DIN 20066
  • Fast and easy tool change
  • Three feed speeds, 18/28/40 metre/minute
  • Three cutting speeds
  • Two cutting heights
  • Cutting blade completely encased

Dimensions
Length: 1 070 mm
Width: 750 mm
Height: 1 100 mm
Weight: 475 Kg

Designation
AutoCut 5-32CTS 5,5kW: 9080-01-00
