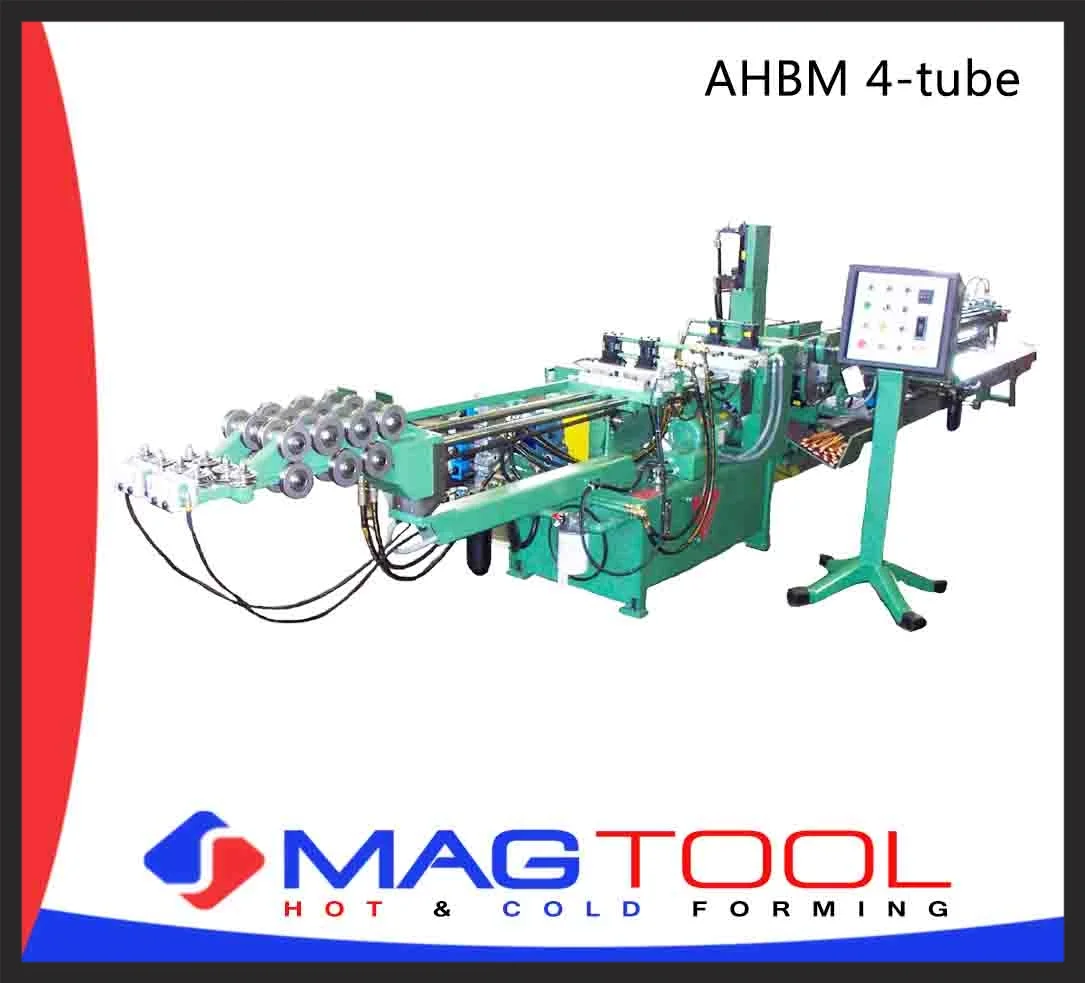

Tridan AHBM 4-Tube

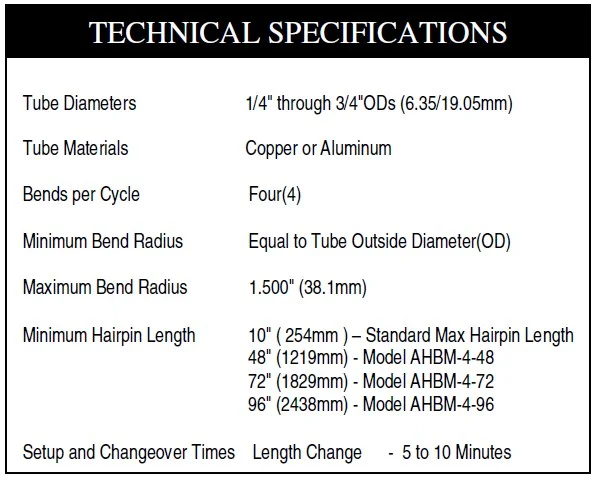

General Information

The Tridan Model AHBM Modutron Hairpin Bender is a fully automatic mandrel type bender that is used for the production of 180 degree hairpin bends. Four tubes per cycle, either copper or aluminum, can be hitch type fed from level wound rolls and are cut off by Tridan’s revolutionary chip free orbital system.

The Model AHBM-4 Modutron Automatic Hairpin Bender is one of a family, of six level-wound coil fed hairpin benders built by TRIDAN; which utilize an orbital type chip-free (chipless) tube cutoff system. The Model AHBQ-4 processes two(2)hairpins per cycle, while the Model AHBV-4 six(6) hairpins per cycle. In addition, all three models are available in a combination Hairpin Bender - Straight & Cut-to-Length Line version, which allows production of either hairpins or straight tube lengths from the same machine. The production application of the TRIDAN Model AHBM-4 is to produce hairpin bends from level-wound coiled tubing of copper or aluminum. It is a fully integrated system consisting of a Tube Straightening, Sizing, and Lubrication Section, adjustable-length Tube Feeding Section, a chipless Tube Cutoff Section, and Hairpin Bender Section. Supporting equipment include a Tube Decoiling System. The Control System is designed in such a manner that all operations are sequenced fully automatically or may be individually placed.
