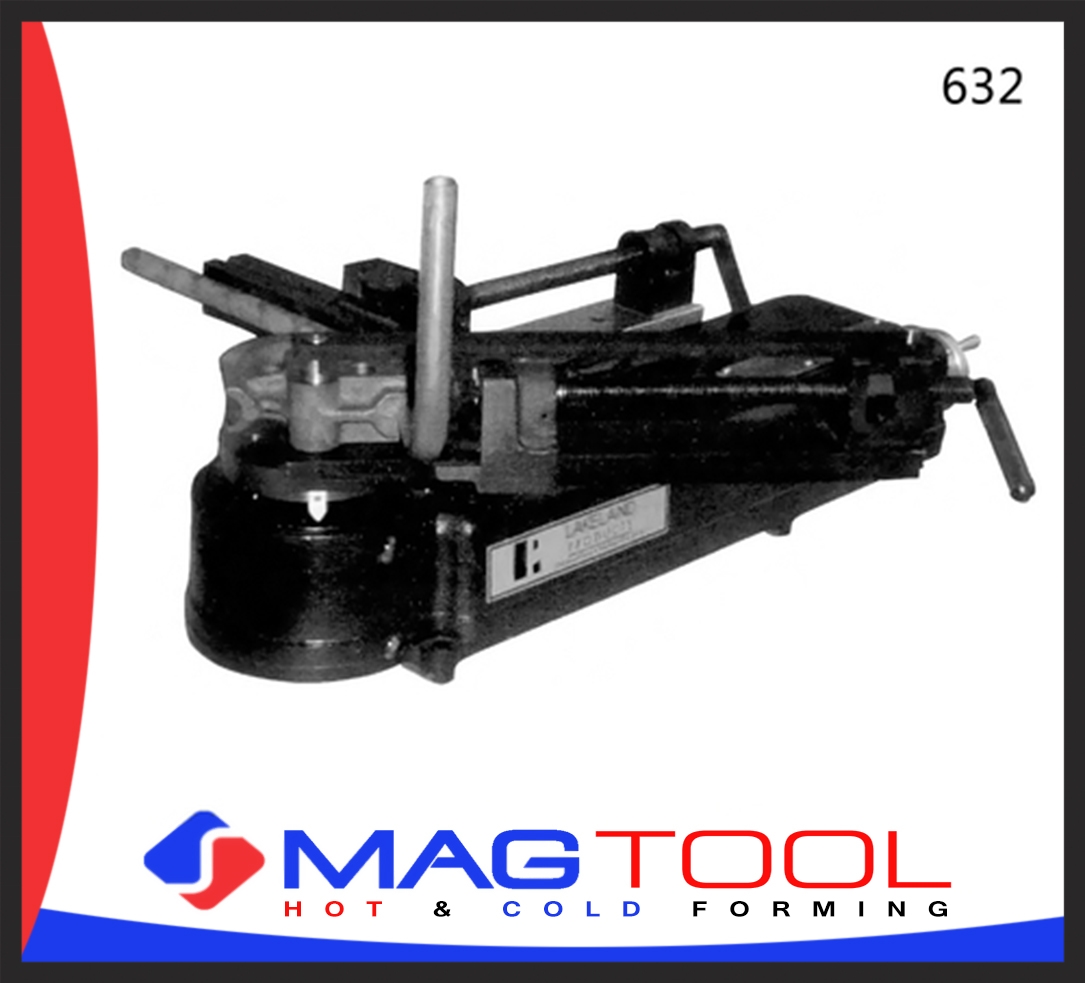

Model 632

Standard Features

  • 3/8"- 2" Capability
  • Indexable Bend Angle Stop
  • Rugged Heavy Duty Design
  • Quick Clamp Engagement
  • Hydraulic Power Unit
  • Radius Block Variety
  • Combination Slide & Clamp Blocks
  • Mandrel Capability

Benefits

  • Can bend virtually all common sizes.
  • Dial-in degree of bend required and bender will automatically stop when bend is complete.
  • Has additional dial scale to monitor bend progress.
  • Proven, long-life design utilizes 10,000 PSI hydraulic cylinder to operate bend arm.
  • Easily portable
  • Spring on cylinder automatically returns bend arm to start position after bend is complete.
  • Standard clamp and slide block arms use half-turn nut to quickly engage and disengage tooling.
  • 10,000 PSI hydraulic power-pack unit allows simple operation with on-off jog switch.
  • ½ HP, 115V operation.
  • MUST BE ORDERED SEPARATELY.
  • Meet virtually any bend radius specification
  • Optional "Flare-End" block allows bend adjacent to flare.
  • Custom tooling available for metric tubing, rigid conduit and I.P.S. pipe.
  • Only five blocks cover entire standard size range.
  • Reduces tooling costs.
  • Easily converted to bend thin wall tube with use of optional mandrels.
