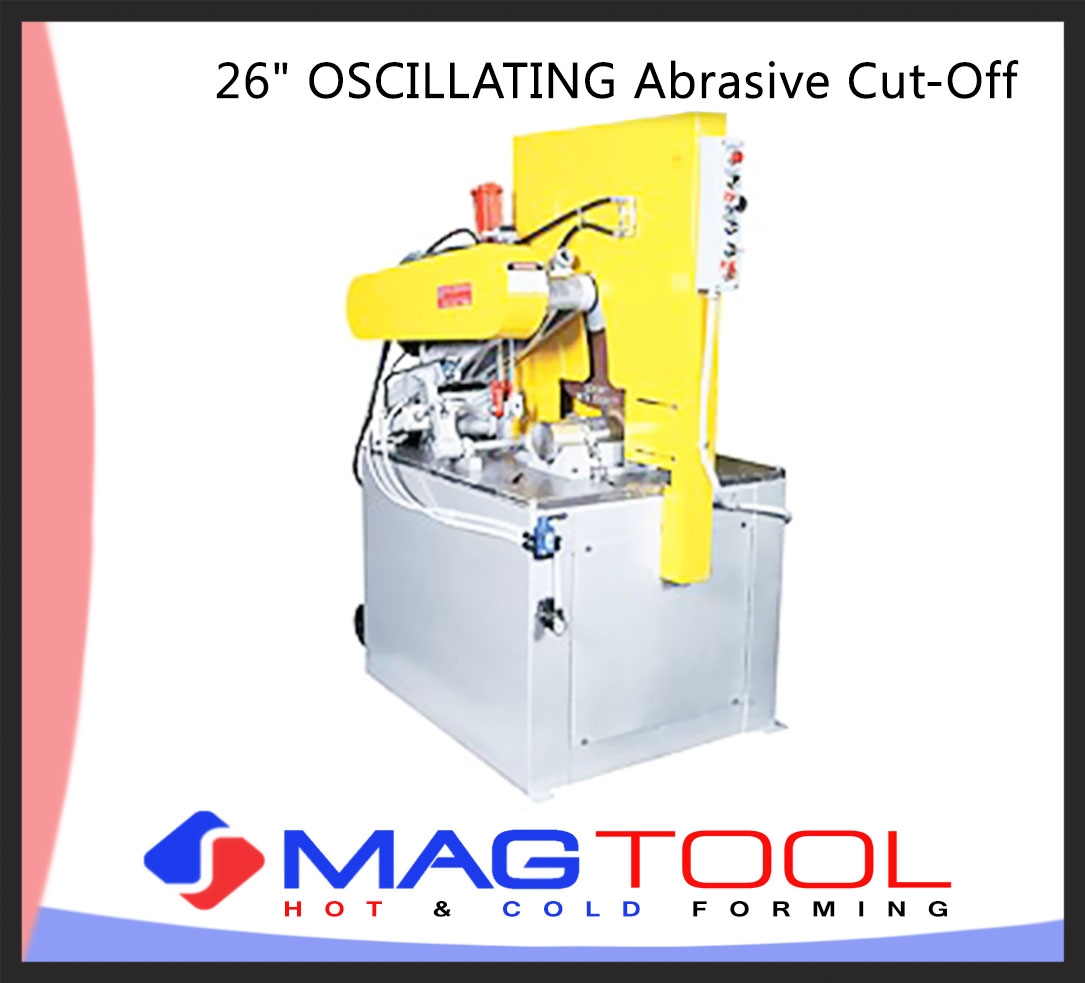

26" Wet OSCILLATING Abrasive Cut-Off

Standard Features:

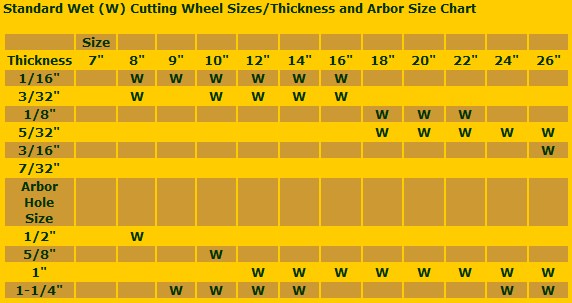

Wheel Capacity: 26" diameter • Wet Non-Reinforced and Reinforced Wheels
Motor: 30 or 40 HP Special Hi-Torque • Totally Enclosed Fan Cooled •
3 Phase
Starter: Magnetic with thermal overload; 110 volt at the pushbuttons
Spindle Bearings: Heavy-duty sealed ball bearings. Lubricated for life.
Arbor Shaft: 1" arbor
Drive: Positive timing belt.
Oscillator: 1/3 HP gear motor
Safety Guards: Cutoff wheel and guards exceed safety code requirements.
Stop: Adjustable down stop limits depth of chop stroke.
Vise: Air operated “V” shaped chain holddown vise. Hold various shaped materials.
Hydraulic Power Head: (PH models only) with hydraulic feed control valve for smooth
accurate cutting
Wheel Wear Compensator: (WWC & HP models only) senses end of cut, returns wheel to up position.
Oscillation: (OSC models only) For improved cutting, reduced burr and longer wheel life; Oscillator: 1/3 HP gear motor
Shipping Weight: Machines: 1900-2400 lbs.
