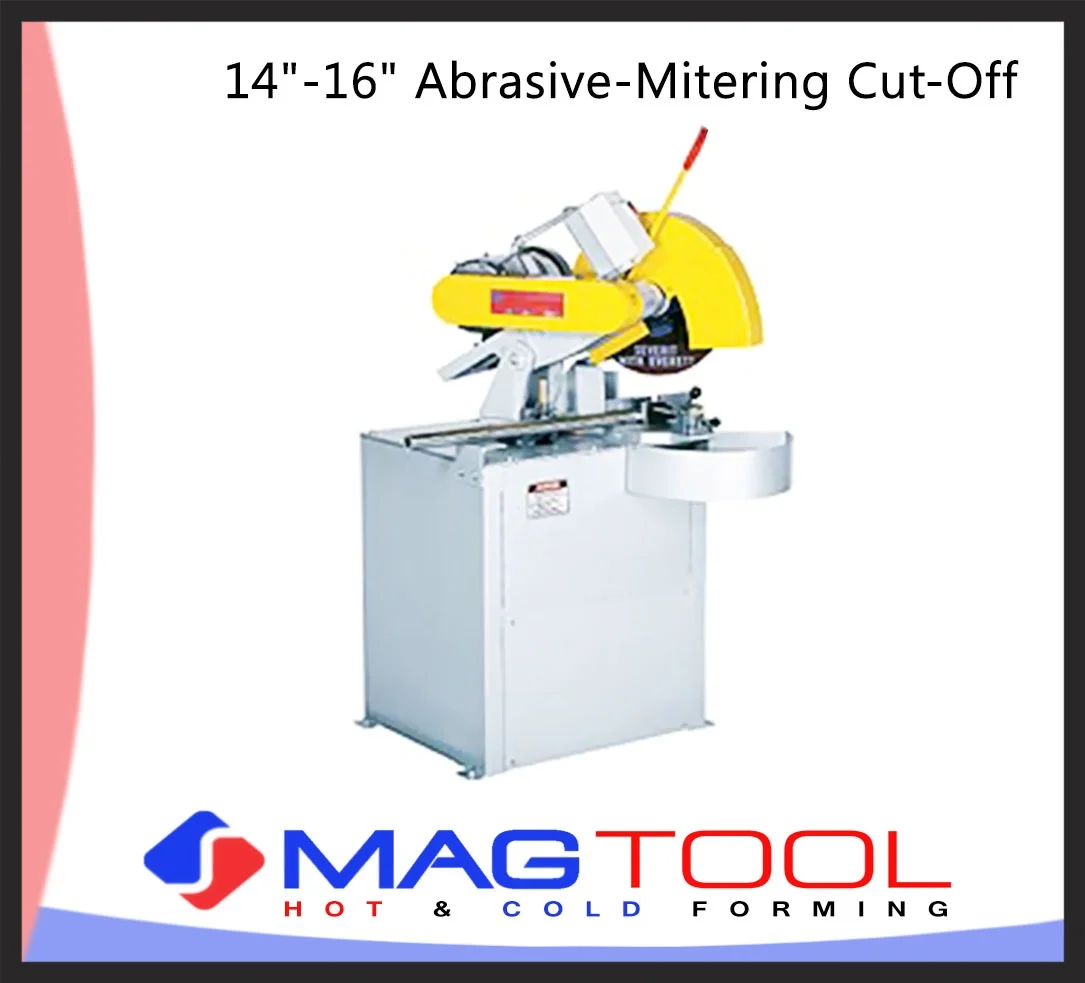

14"-16" Abrasive-Mitering Cut-Off
Wheel Capacity: 14" or 16" diameter • Dry Reinforced Wheels
Motor: 7.5 or 10 HP Special Hi-Torque • Totally Enclosed Fan Cooled •
1 or 3 Phase
Starter: Magnetic with thermal overload; 110 volt at the pushbuttons
Spindle Bearings: Heavy-duty sealed ball bearings. Lubricated for life.
Arbor Shaft: 1" arbor
Drive: Multiple “V” belt, raw-edge sure grip, stretch resistant.
Safety Guards: Cutoff wheel and guards exceed safety code requirements.
Stop: Adjustable down stop limits depth of chop stroke.
Vise: Quick action cam lock. Outboard support to left of vise. Air operation optional.
Shipping Weight: Machines: 450-780 lbs.
