Internal Flange Alignment Tool

General Information

The Internal Flange Alignment Tool from Mathey Dearman quickly and precisely aligns the ID of flange to the ID of pipe. The ID of flange can vary +/- 1/8” (3 mm) to the ID of the pipe and still align perfectly. Designed to align 150 and 300 pound flanges, the Internal Flange Alignment Tool should be used for flange alignment only, and should never be used as the sole support of the flange.

FEATURES:

• ACCURATE | Eliminates guesswork

• FAST | Flanges can be aligned and squared in as little as one minute

• SAVES TIME & MONEY | Alignment can be performed by one person

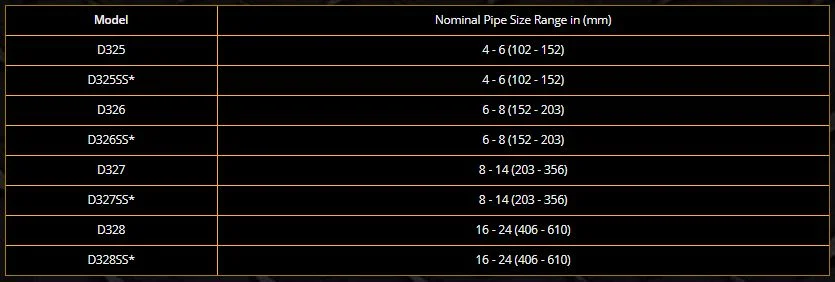

Specifications
